POWER BAND RE-SAWS Ø 900 SR-R 900 Meber

Home/Wood/POWER BAND RE-SAWS Ø 900 SR-R 900 Meber

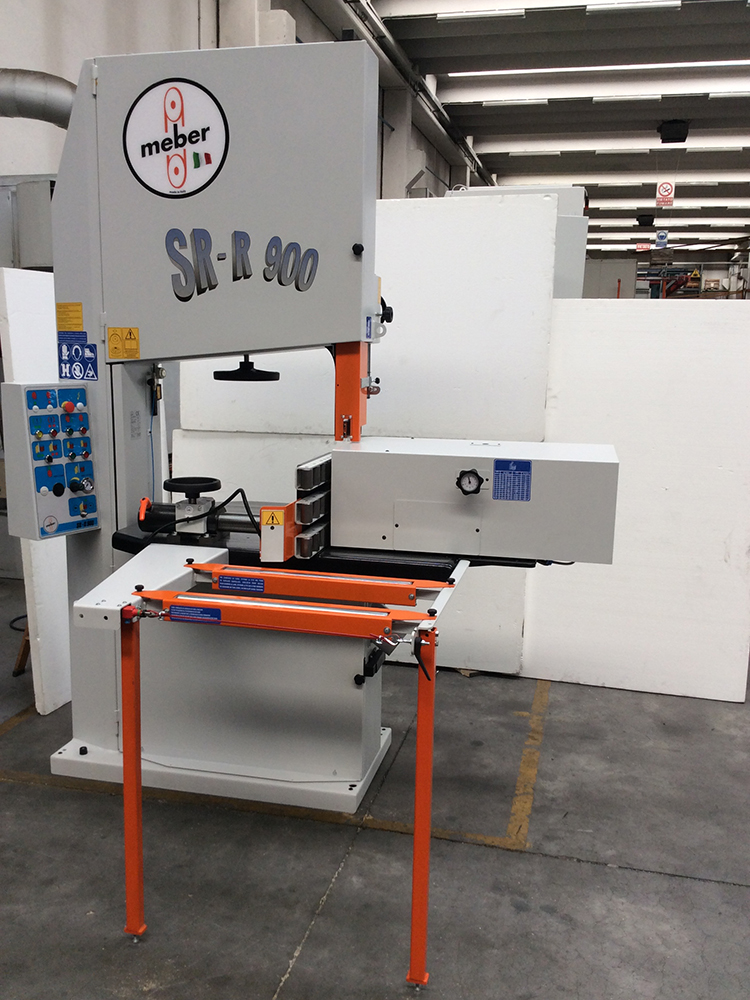

POWER BAND RE-SAWS Ø 900 SR-R 900 Meber

TECHNICAL DAT

POWER BAND RE-SAWS Ø 800-900-950

  BEST 800 SR-R/900 BEST 950
Flywheel diameter mm. 800 900 950
Working table sizes 1300 x 800 1200 x 810 1500 x 1100
Cutting capacity height x width mm. 380 x 750 450 x 880 520 x 920
Blade width mm. 80 75/80 110/120
Flywheel R.P.M. 700 700 700
Length of blade, mm. 5090 6230* 6310
Motor power HP 20 (25) 15 (20) 30 (35)
Saw blade speed 29 33 34
Net weight of machine Kg. 1450 950 2400



DOWNLOAD DEPLIANT

Category:

Description

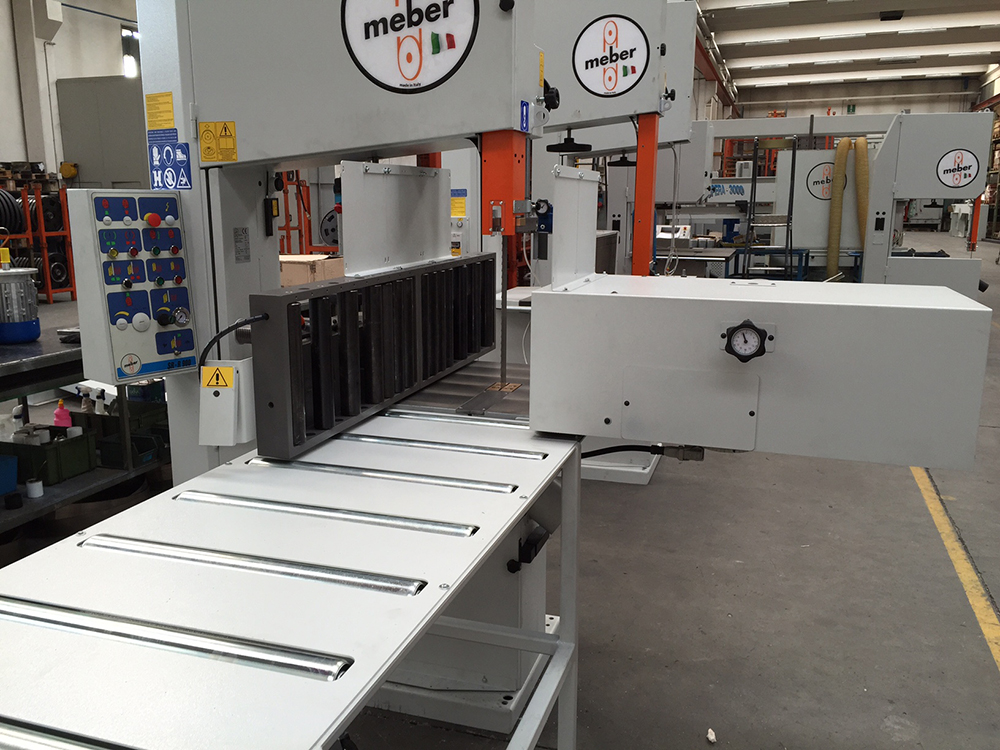

POWER BAND RE-SAWS Ø -900
The scrapers with brass blade allow a good cleaning of the flywheels surface obtaining the easy working of the blade.

The drip-feed lubricator keeps the blade and the surface wheels cleaned by a felt impregnated of gas-oil contents in a tank.

Electric installation certified to ISO 9000 – EN 29000 standards.
Machines are pre-tested as to noise level and sawdust emission according to European standards.

Ergonomic position of the control panel board.
Maximum tilting table 20° (tilting not available in CE version).

An integral blade guard and two insert sawblade guides are supplied with the machine to guarantee the best driving of blade.

The double dust ports ensure optimum sawdust extraction and guarantee a healthy work environment (3 in series Best).
